HW-450 Heavy duty Lead free Wave solder machine

HW-450 Heavy duty Lead free Wave solder machine

0 Customer Reviews Pdf file Data Sheet
In stock and ready for shipment
Quick Overview

If you are searching for the maximum level of automation and performance in a single heavy duty wave soldering machine, then this is the machine for you.

This price includes the Import Tariff and the Shipping Cost door-to-door!
Your selection is: HW-450 Heavy duty Lead free Wave solder machine
Unit Price: $50,000.00
Total
12344

Overview

The HW-450 Heavy Duty Lead Free Wave Solder Machine comes standard equipped with strong conveyor finger, hardly get bent. Good for both bare PCB and also 5kg weight carrier. High-precision, automatic spray fluxing system. The user interface is an Industrial PC and Siemens PLC for controlling system, English interface. Can stock numerous groups parameters, provides real-time temperature monitoring. The solder pot can automatically move in & out so if you add another solder pot for lead solder, you can use this machine for both lead free and lead solders. High quality heavy double hook titanium finger

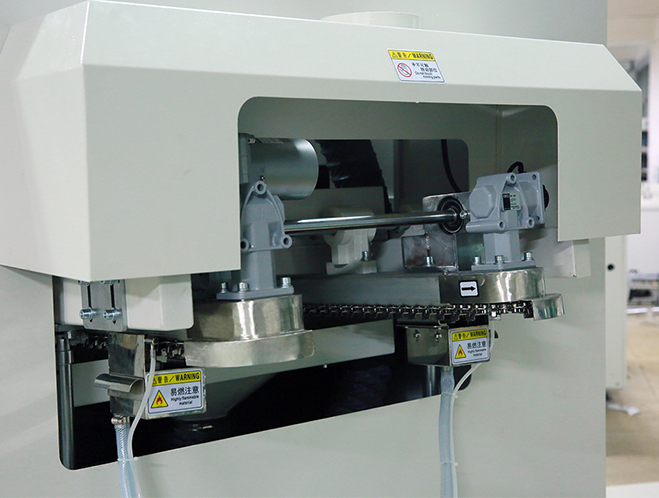

High quality heavy double hook titanium finger ,V and L type is optional

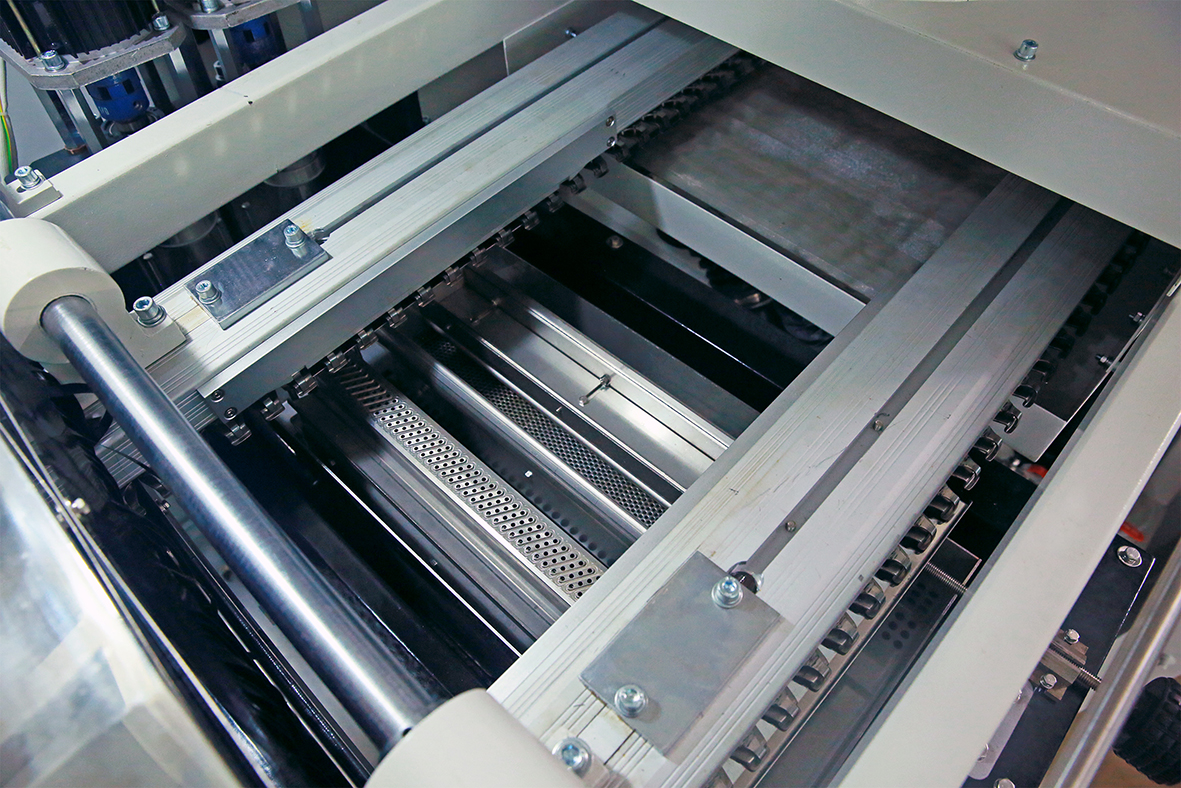

High Precision Automatic Spray Fluxing System

High-precision, automatic spray fluxing system

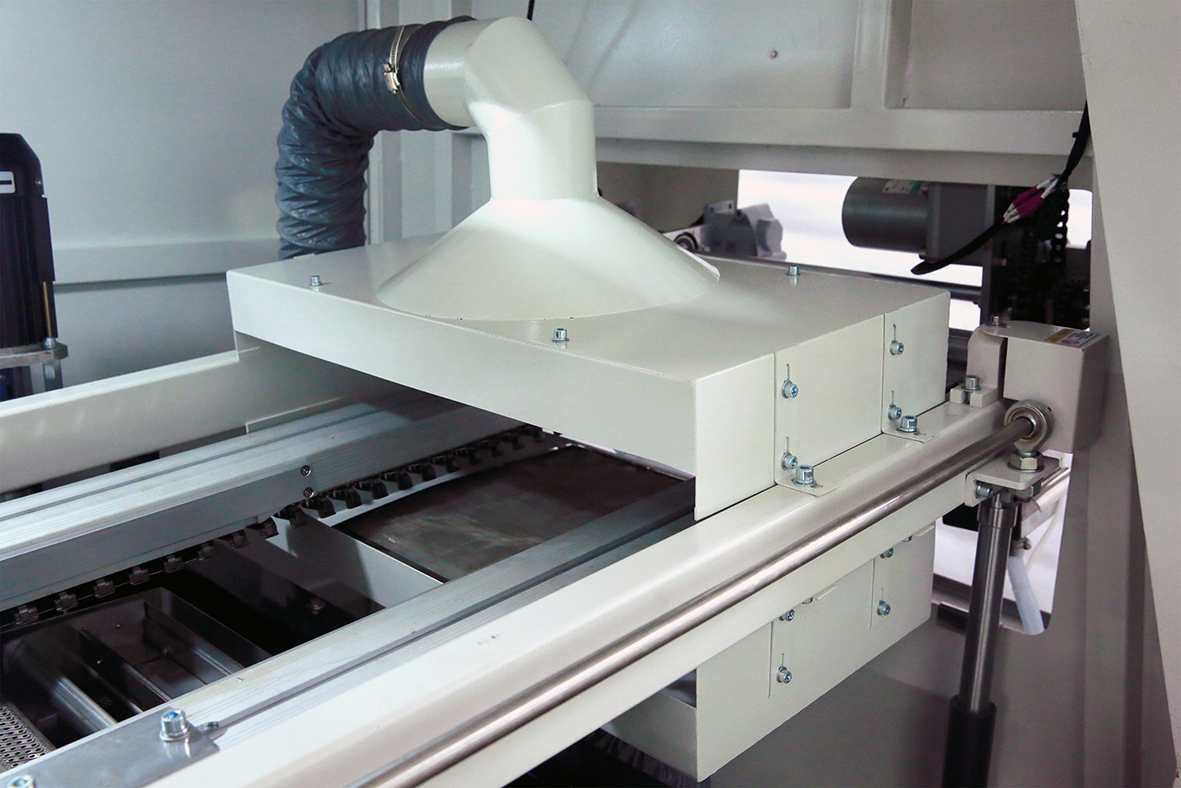

Spraying evenly and customized flux recovery system

Spraying evenly and customized flux recovery system

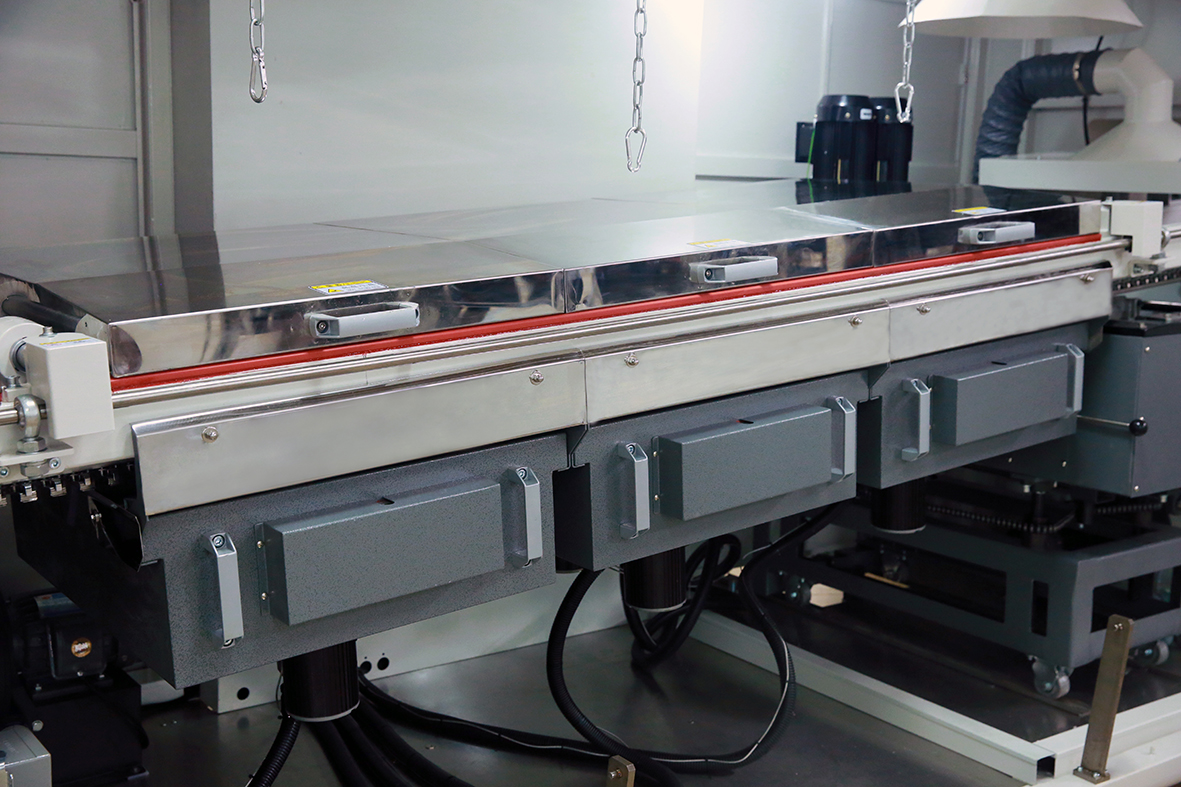

Standard with 3 hot air bottom preheating zones

Standard with 3 hot air bottom preheating zones

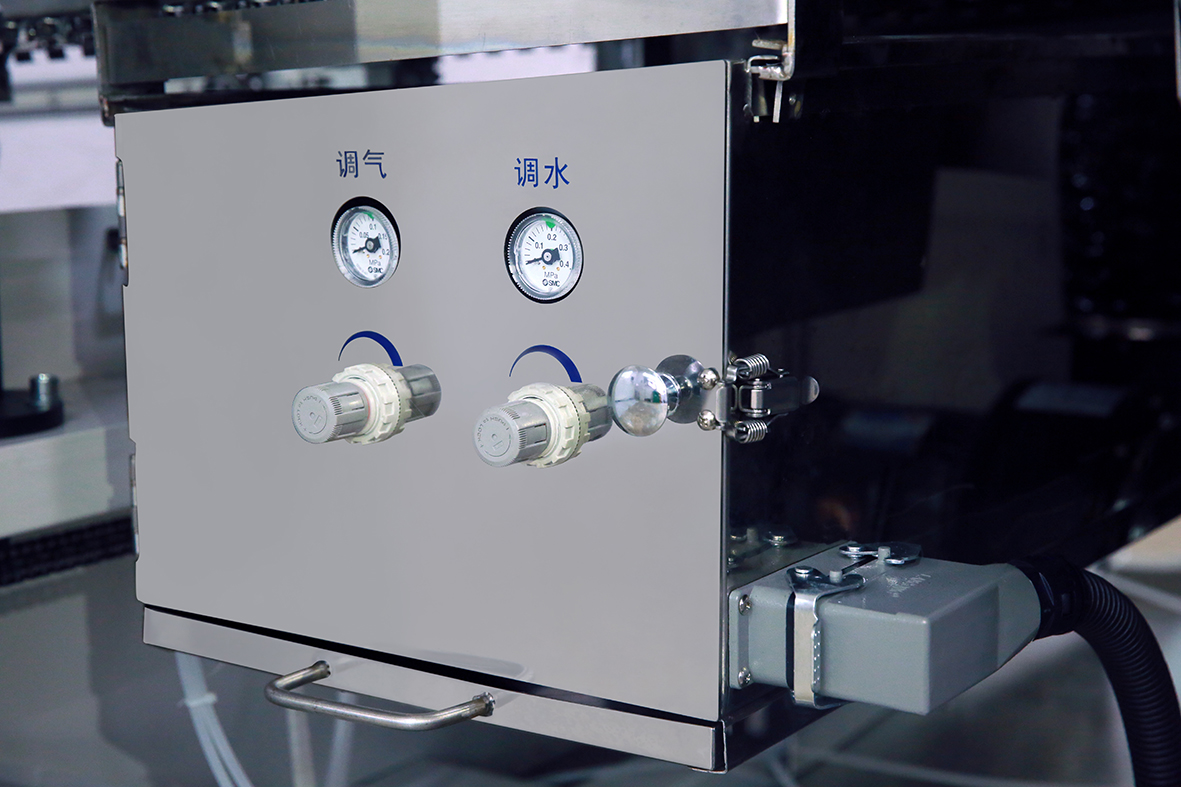

Standard simple center support system solder pot adjust position support point

Standard with simple center support system on solder pot, it is possible to adjust the position of the support point

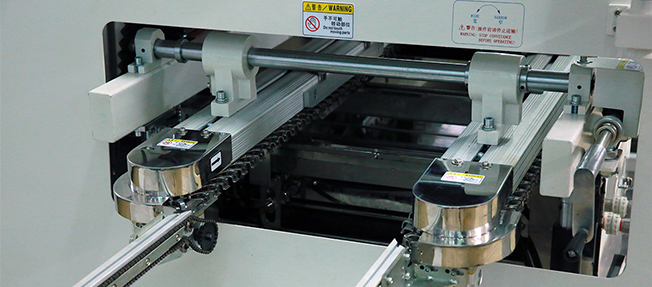

Top and bottom cooling system after soldering

Top and bottom cooling system after soldering

Main Features

The Flux Spraying system

The Flux Spraying System is perpendicular to the PCB, so it spread more even on PCB and Enhance flux penetrating property to the holes improving the adhesiveness of the solder metal Effectively reduce operating cost.

Modularize solder pot

10mm thickness casting iron solder pot, no easy to deform when heating, perfect contact with heater for more uniform heating, used graphite for insulation for anti-moisture and anti-corrosion The pot is ceramic, coating for a smoother surface, prevent corrosion, longer life time.

Conveyor Finger

Standard equipped with strong conveyor finger, hardly get bent. Good for both bare PCB and also 5kg weight carrier. Specially designed for heavy load carrier.

User friendly interface

Industrial PC and Siemens PLC for controlling system, English interface. Can stock numerous groups parameters. Direct input target temperature into the program Display actual temperature.


Lead-free Wave Soldering
  • 1. LCD
  • 2. Buffer system
  • 3. Flux auto-supply system
  • 4. Exhaust fan
  • 5. Flux spray system
  • 6. Pre-heater
  • 7. Solder pot lifting unit
  • 8. Dual wave Solder pot
  • 9. Cooling system
  • 10. Angle adjustment controller
  • 11. Finger cleaning system
  • 12. Conveyor system

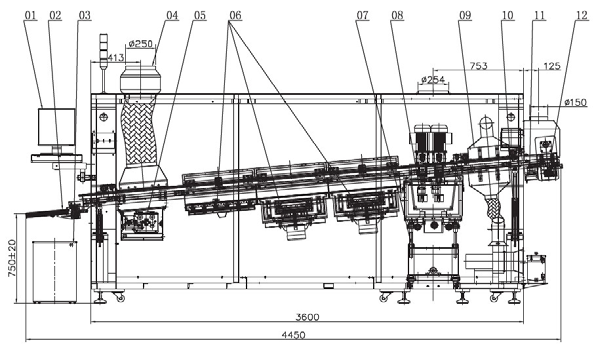

Machine Schematics

Specs

Model HW350 HW450 HW610
Dimensions LxWxH(mm) 4450x1400x1700 4450x1500x1700 4450x1670x1700
Weight Approx. 1800kg Approx. 2100kg Approx. 2600kg
Power Supply 3PH 380V 50HZ 3PH 380V 50HZ 3PH 380V 50HZ
Startup Power 32KW 32KW 45KW
Operation Power Cons Approx. 8KW Approx. 8KW Approx. 11KW
Control System PC+PLC PC+PLC PC+PLC
Spraying Movement (step motor) (step motor) (step motor)
Spray Pressure 0.2 Mpa - 0.4Mpa 0.2 Mpa - 0.4Mpa 0.2 Mpa - 0.4Mpa
Flux Flow Arranga Option Option Option
Auto Fill Flux Standars Standars Standars
Exhaust Top Exhaust Side Exhaust Top Exhaust Side Exhaust Top Exhaust Side Exhaust
Exhaust Ducting d (mm) Ø 250 Ø 250 Ø 250
Exhaust Capacity 30M°/min 30M°/min 30M°/min
Preheating Mode Convection/ IR emitter Convection/ IR emitter Convection/ IR emitter
Control Mode PID PID PID
Preheating Zone Number 3 3 3
Preheating Lenght (mm) 1800 1800 1800
Preaheating Temperature Room temp. -200°C Room temp. -200°C Room temp. -200°C
Warm-up Time (min) Approx. 12min (settings: 150°C) Approx. 12min (settings: 150°C) Approx. 12min (settings: 150°C)
Blower Motor 250W 3PH 220 VAC 250W 3PH 220 VAC 250W 3PH 220 VAC
PCB Width (mm) 50-350 50-450 50-610
Conveyor Direction LR (option: RL) LR (option: RL) LR (option: RL)
Conveyor Speed (mm/min) 500-1800 500-1800 500-1800
Conveyor Height (mm) 750±20 750±20 750±20
Available Comp. H(mm) Top 120 /Opt: 250) Bottom 15 Top 120 /Opt: 250) Bottom 15 Top 120 /Opt: 250) Bottom 15
Conveyor Speed Control Mode Closed Loop Closed Loop Closed Loop
Fingers New design Double-hook Type Finger: 2D-40 Spring Pressing Double-hook Finger New design Double-hook Type Option
Conveyor Angle 4-7° 4-7° 4-7°
Type of Solder Pot Motor Drive Motor Drive Motor Drive
Solder Pot Material Casting Iron Casting Iron Casting Iron
Wave Height Adjustment (Inverter) Approx: (Digital Control by PC)
Cooling Method (Air Cooling ) Option: (Water cooling)
Heater Power 220 V 13.5KW 220 V 13.5KW 380 V 18KW
Solder Pot Temperature 300°C 300°C 300°C
Solder Pot Capacity 500kg 500kg 650kg
Wave Drive Power 180Wx2 3PH 220 VAC 180Wx2 3PH 220 VAC 180Wx2 3PH 220 VAC
Solder For Warm-up Time Approx: 150min (setting 250°C) Approx: 150min (setting 250°C) Approx: 150min (setting 250°C)
Temp. Control Mode PID PID PID
Finger Cleaning System Brush Brush Brush
