Offshore PCBs

Offshore PCBs

+ ISO-9001 and UL certified - Class II & Class III
+ Rigid circuid boards up to 40 layers
+ 3-mil traces and 3.5-mil spaces
+ Minimum mechanical drill 8-mil
+ Minimum laser drill 3-mil
+ Controlled Impedance
+ Blind & Buried Vias

* All NRE and Electrical Testing charges included

NEW! You can now quote and order your PCB Assembly (labor) and Electronics Components (parts) all from this page. Just click on the tabs.

Overview


You can now get Cutting Edge PCBs for a Fraction of what you usually pay as fast as 24-Hour Turn!

  Cutting Edge Technology
  • Printed Circuit Boards up to 30 layers
  • 2.5-mil traces and 3.5-mil spaces
  • Minimum drill size 8-mil
  • Blind and Buried Via
  • Controlled Impedance
  • High temperature, high frequency material
  • Aluminum and other special materials
  • RoHs Compliant
  • ISO-9001 and UL certified

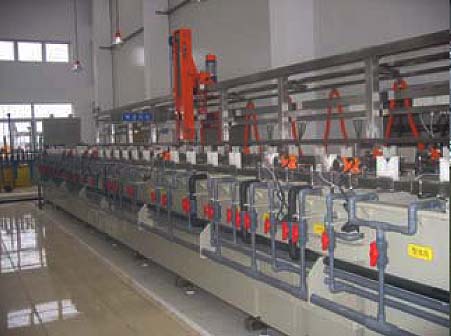

 Prototech fab1



RIGID BOARDS
Specification 1 Specification 2 Unit Standard Special
Inspection standard Quality Inspection   GB/T 16261-1996, IPC-6012 Class II IPC-6012 Class 3 GJB362-96
Test method   IPC-TM-650, GB/T4677-2002
Cam department Accept data   TANGO, PROTEL series, PADS2000, Power PCB, AUTOCAD, PCAD
Cam operation software   Genisis, CAM350, GC-CAM
General capability Max layer Layer 26 30
Max board size(high frequency /FR4 material) inch 16x18 / 20x24 22x42
Min board size(not panel) mm 20*30
Min and Max board thickness mm 0.3 - 4.0 5.0
Min and Max Board Thickness 2-layer mm 0.4 - 4.0 0.3 - 5.0
Min and Max Board Thickness 4-layer mm 0.6 - 4.0 0.45 - 5.0
Min and Max Board Thickness 6-layer mm 0.8 - 4.0 0.65 - 5.0
Min and Max Board Thickness 8-layer mm 1.2 - 4.0 1.0 - 5.0
Min and Max Board Thickness 10-layer mm 1.5 - 4.0 1.2 - 5.0
Min and Max Board Thickness 12-layer mm 1.6 - 4.0 1.4 - 5.0
Min and Max Board Thickness 14-layer mm 1.8 - 4.0 1.65 - 5.0
Max Aspect Ratio   10:1 (Related min hole size 0.20mm)
Min drilling size mm 0.2
Max. Inner layer copper finished (oz) oz 3 5
Max. Outer layer copper finished (oz) oz 4 6
Min BGA pad diameter (No via pad) mil 10
Min SMT/BGA space mil 8
FR4 core/prepreg thickness Core thickness
(base copper Hoz/Hoz, 1oz/1oz)		 mm
0.08 0.1 0.13 0.15
0.20 0.25 0.36 0.51
0.71 0.80 1.0 1.2
1.5 2.0 2.4 2.5
3.0 3.2
0.05 H/H
base copper:
18/35
35/70
70/105
Prepreg thickness mm 7628=0.185, 2116=0.105, 3313=0.095, 1080=0.075
  mil
3.15 3.94 5.12 5.91
7.87 9.84 14.17 20.08
27.95 31.50 39.37 47.24
59.06 78.74 94.49 98.43
118.1 125.9

  mil 7628=7.28, 2116=4.13, 3313=3.74, 1080=2.95
Special Material Rogers   Ro4350, Ro4350B, Ro4003, Ro4003C, Prepreg:RO4403 (4mil), RO4350(4mil)
Arlon   AD350, AR1000, 25FR, 33N, Diclad527, 85N, etc
Isola   370HR
Halogen-Free (Tg=130)   Shengyi core: S1155, PP: S0155
Halogen-Free (TG=170)   Shengyi core: S1165, PP: S0165
High TG   Shengyi core : S1170 pp: S070
Surface Treatment Surface   HAL, HAL Lead free, Immersion gold, immersion Sn, Immersion silver, OSP, Carbon ink, Flash gold
Gold finger   Hard gold, flash gold
Impedance Control Material   FR-4, Rogers, Arlon?Taconic
Tolerance % ±10 ±5

Specials

Get 20% off any Laser Cut SMT Stencil and Solder Paste when you order your PCBs!
Just place your PCBs in your shopping cart, the smt stencil and the solder paste are automatically discounted.

Specs



Process Capability

Spec 1Spec 2unitStandardSpecial
Image transfer Min trace width/space in inner layer 1/2oz base mil 4/4
1oz base mil 5/5
2oz base mil 8/8.5
3oz base mil 12/10.5
4oz base mil 18/14
Min trace width/space in outer layer 1/2oz base mil 4/4.7
1oz base mil 5/5.2
2oz base mil 9/9.5
3oz base mil 12/14
4oz base mil 18/21
Compensation to inner layer (Hoz/1oz/2oz/3oz/4oz) mil 0.5/1.0/2.5/3.5/6.0
Compensation to outer layer (Hoz/1oz/2oz/3oz/4oz) mil 1.2/1.7/4.5/6.0/9.0
Inner layer isolation ring width(single side) (Min) mil 10(≤6 layer);12(7-14 layer);14(layer≥14)
Through hole min pad ring size (inner) mil 5(1/2oz,1oz),6(2oz),8(3oz)
Through hole min pad ring size (outer) mil 4 (before compensation)
Min inner layer isolation strip width(after compensation) mil 8 7
Min space from conductor to board edge in inner layer mil 8 7
Min space from conductor to board edge in outer layer mil 8 6
Min grid trace width/space finished size mil

6/6(1/2oz Base); 6/6(1oz Base); 10/8(2oz Base)

10/10(3oz Base); 12/12(4oz Base)


Min Via pad size(single side)   4 3
Etching logo line width(Min) mil 8(1/2oz Base); 10(1oz Base); 12(2oz Base)
Laminating Min dielectric thickness mm 18um Base)
Max dielectric thickness(no bare core) mm 7628+2116+7628=0.185+0. 105+0.185=0.475
Board thickness tol. (T≤1.0mm) mm ±0.1
Board thickness tol.(T>1.0mm) % ±10(1.0mm<T≤2.4mm),±8(T>2.4mm)
Twist % 0.7 (NO SMT board);0.5(SMT board) 0.2
Drilling Drilling size mm 0.2-6.3(step:0.05mm) 0.15
Min drilling size for High frequency board mm 0.25 0.20
Min NPTH in first drilling step mm 0.5 0.2
Hole wall to conductor space(Min) mil 8(≤6layer );10(≤14layer)
Min hole to conductor space for blind/buried board mil 9(1 time laminating);10(2 or 3times laminating)
Min. space from two hole wall in the same network mil 6(after compensation)
Min space from two hole wall in the diff. network mil 12(after compensation)
Space from two NPTH wall(Min) mil 8
Hole position tol. mil ±3
Press fit hole tol. mil ±6
Drilling diameter tol. mm 0.04
Drilling slot tol. mm ±0.15(long side)±0.10(short side)
Mill cutter diameter mm 0.60--1.20
Slot length direction/width direction   1.8?1
Depth tol. of step hole and countersink mm ±0.2 ±0.10
Tol. of Step hole and countersink mm ±0.15 ±0.10
Hole angle tol. of step hole and counter sink ° ±10
PTH Min. copper thickness in hole um 20
Solder mask(S/M) S/M type   Nanya LP-4G
S/M color green, yellow, black, white, red, blue
S/M opening single side(Min) mil 2
Min S/M opening width for logo mil 8
Min S/M opening single side for NPTH mil 4
S/M bridge(Min) mil 4(green),5(other color)
S/M hardness H 6
S/M thickness(corner of the trace)(Min) um 10
S/M thickness over via um 8-10 15
S/M over max copper oz 4
Plugged via(Max) mm ≤0.35 0.4-0.8
Silkscreen Silkscreen color   white, black, yellow, grey
Silkscreen line Width/Height(18um Base) mil 4/27
Silkscreen line Width/Height(35um Base) mil 5/30
Silkscreen line Width/Height(70um Base) mil 6/45
Min space from silkscreen to pads mil 6 4
Min space between carbon ink pad mil 15 12
Min space between carbon ink and conductor mil 10 8
Carbon ink larger than conductor by min. size mil 6 4
Carbon ink sheet resistance ohm 15
Peellable mask   SD-2955,SD-2954, HL-808B(QUNQIANG)
Silkscreen Peelable mask thickness mm 0.20--0.50
Peelable mask opening larger than conductor by min size mil 7 6
Min space from peelable mask to pad(min) mil 16 14
Max plugged via size for peelable mask mm 5
Gold finger Ni thickness standard um 3-5
Au thickness standard um 0.8-1.3
Max finger length(max) inch 2
Finger space(min) mil 7
Immersion gold Ni thickness standard um 3-6
Au thickness standard um 0.05--0.075 0.05-0.1
Immersion Sn Sn thickness mm 0.80-1.20
Min board size mm 50*100
Immersion Ag Ag thickness um 0.10-0.30
Min board size mm 60*80
OSP OSP thickness um 0.15-0.30
Min board size mm 110*110
HASL Min SMT/BGA pad space mil 6
Board thickness(finished) mm 0.6-3.0 0.5-4.0
Sn thickness um 2?40
Lead free HASL Sn thickness um 2-40
Routing Outline tol. mil ±6 ±4
Milling cutter size(Min) mm 0.8
Radius at inner angle(Min) mm 0.5 0.4
Chamfer angle for gold finger ° 20---60
Gold finger chamfer angle tol. ° ±5
Gold finger chamfer depth tol. mm ±0.20
Slot size tol.(milling slot) mm ±0.15 ±0.12
Second drilling step hole tol. mil ≥3
Second drilling step hole location tol. mil ±5
V-CUT angle ° 20,30,45,60
V-CUT angle tol. ° ±5
V-CUT symmetry tol. mm ±0.05
V-CUT web thickness tol. mm ±0.1
Min dis. from V-cut central line to conductor (T≤1.0) mm 0.3(20°),0.33(30°),0.37(45°),0.42(60°)
Min dis. from V-cut central line to conductor (1.0<=T≤1.6) mm 0.36(20°),0.4(30°),0.5(45°),0.6(60°)
Min dis. from V-cut central line to conductor (1.6<=T≤2.4) mm 0.42(20°),0.51(30°),0.64(45°),0.8(60°)
Min dis. from V-cut central line to conductor (2.5<=T≤3.2) mm 0.47(20°),0.59(30°):0.77(45°):0.97(60°)
Remain thickness tol. of Gold finger after chamfer mil ±5
Guide trace for gold finger mil 20 10
Bridge+stamp hole standard design   3drill hole in one bridge, hole wall dis. 0.3mm,4 hole wall, hole size0.6-1.0mm,bridge dis.≤3inch
E-test Space form e-test point to board edge mm 0.5
Resistance for Short ohm 10 7
Resistance for Opens (min) ohm 5
Insulation resistance for Shorts (max) M ohm 100
Test voltage v 200 500
electric current (max) mA 200
FQC report and test COC report   standard
Impedance control test standard
Micro-section test standard
Thermal shock test
Withstanding voltage test
Ionic contamination test
Solder ability test
Insulation resistance test
Peel-able strength test
