ViewMate Deluxe
ViewMate Deluxe
With US Quickturn Prototype PCBs
You will receive a $95 coupon with your pcb order to purchase viewmate deluxe.
Start Your QuoteViewMate Deluxe
It allows you to edit and save your files, panelize your boards and much more!
View Features
“
Circuit Services Worldwide
I happened to know that Pentalogix is the best of the best for reading in difficult files. (That's why I asked this company to buy me ViewMate Deluxe when I started working here). Anyhow, your software made me look like a hero today. Thanks! A $95 program could read in a file that a $50,000 program could not. This software is a breeze to install and never crashes. I've dealt with around 5 different PCB CAM packages in my 18 year career and this is easily the most stable.
Jason DresdowCircuit Services Worldwide
ViewMate Deluxe Powerful Features
Edit and save your files, panelize your boards and much more!

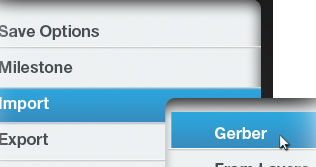

Import and Export
- Import and export multiple PCB data formats (Gerber, DPF, NC drill)
- Import and merge multiple aperture list formats

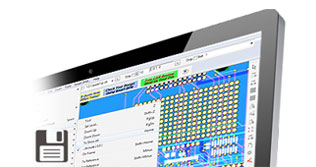

Viewing
- Save jobs with all layer data in one file
- Add and remove elements, insert text, and chamfers
- Save jobs with all layer data in one file
Editing
- Layer editing operations
- Graphical PCB editing
- NC drill editing
- Numerous layer operations including align, convert, snap to grid

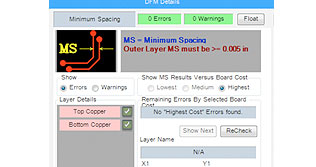

Smart DFM
- Smart DFM automated file fixing
- Design rule checking
- Quote & Order boards instantly
- Step & repeat
