How to Choose the Right CAM Tool: Matching Capability to Need

Gerber viewers serve an important purpose despite their limitations. PCB designers use them to validate file sets before sending them off to manufacturing. Sales teams use them to quickly assess customer designs. Purchasing departments rely on them for supplier communication. Even fabricators use Gerber viewers for rapid design reviews before committing resources to full CAM processing.

Modern Gerber viewers have evolved beyond simple layer display. Intelligent layer organizers help visualize and organize layer stacks and standard DFM rule checks find general manufacturing errors. Measurement tools enable quick dimensional checks. Net highlighting aids in understanding circuit connectivity.  These tools are also great to find mismatches in the design and most importantly provide an independent tool to verify if the manufacturing data set is complete and accurate before going to fabrication.

For organizations that don’t modify incoming data, a quality Gerber viewer might be all that’s needed.

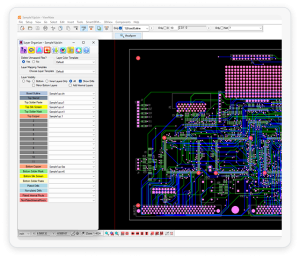

Example of a modern Gerber viewer interface showing layer stack

The key question is simple: Do you need to change the data, or just look at it? If your role involves verification, communication, or basic quality checks, investing in expensive editing capabilities makes little sense. However, the moment you need to run DFM checks, add fiducials, create or adjust panelization, or make even minor design corrections, you’ve outgrown the Gerber viewer category.

The Gerber Editor Middle Ground

Gerber editors bridge the gap between just visual inspection and full fabrication preparation. They appeal to prototype shops, small fabricators, and design service bureaus that need more than visualization but don’t require industrial-scale automation.

A typical Gerber editor allows you to add tooling holes, create simple panels, perform customizable DFM checks, and make minor design repairs. You might merge multiple jobs onto a single panel for cost efficiency, add fabrication notes directly to artwork layers, or create custom test coupons. These capabilities transform raw design data into production-ready files without the complexity or cost of full CAM systems.

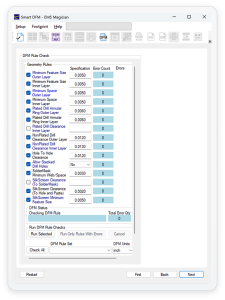

Gerber editor screen showing customizable DFM checks

The Gerber editor category is particularly well-suited to operations that handle a small number of jobs per month with moderate complexity. Such tools are great if you are handling 2- to 8-layer boards, occasional quick-turn jobs, and customers who need minor design assistance. The editing capability pays for itself quickly when you can salvage a job with a simple fix rather than rejecting it or sending it back to the customer for revision.

However, Gerber editors have limitations, too. They typically lack process automation or editing features such as advanced panelization features, automatic SMT stencil data generation, identifying electrically connected nets, or converting data between file formats, just to name a few. As job complexity or volume increases, these limitations become bottlenecks.

Full CAM Workstations: Professional Fabrication Tools

High-volume fabricators and complex board specialists need industrial-strength CAM systems. These platforms transform fabrication preparation from a manual process into an automated workflow.

Consider what happens when a 12-layer HDI design arrives at your shop. A full CAM workstation automatically checks hundreds of customized design rules, identifies potential fabrication issues, generates optimized panels based on board dimensions and quantity, creates appropriate test coupons, generates NC drill and routing files with optimized tool paths, and prepares final artwork with all necessary fabrication markings. What might take hours manually now happens in minutes, with consistent results and full documentation.

The productivity gains multiply with volume. A fabricator processing a high number of jobs every month might save 30 to 60 minutes per job through automation alone. That adds up easily to 100 or even 200 hours saved every month, essentially adding staff capacity without adding headcount. Advanced DFM checking catches issues before they reach the factory floor, reducing scrap and rework. Automated panelization maximizes material utilization, directly impacting profitability.

These systems excel in special handling processes such as analyzing copper areas, clipping silkscreen layers, or creating solder mask or solder paste layers. Professional CAM systems often have incredibly powerful productivity tools such as macros and script-based automation functions that save significant time when customizing manufacturing files for a specific fabrication workflow. If you’re pursuing advanced technology markets, your CAM system must keep pace with manufacturing capabilities.

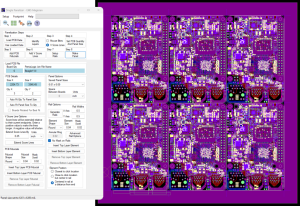

Full CAM workstation dashboard with advanced panelization function

Making the Right Choice

Several factors should drive your decision:

• Volume: First, assess your volume honestly. Processing five jobs weekly doesn’t justify spending $1,000 or more per year for a CAM system, regardless of how impressive its features seem. Conversely, trying to manage dozens of jobs weekly with basic editing tools creates bottlenecks that limit growth.
• Complexity: If you rarely see boards beyond eight layers, don’t pay for advanced HDI features. However, if you’re targeting the high-reliability or advanced technology markets, your CAM tools must support those processes reliably.
• Budget and total cost of ownership: Considerations extend beyond initial purchase price. Training takes time and money and in today’s software-as-a-service (SaaS) environment license and maintenance fees are typically charged annually for each seat. And some vendors charge separately for format readers, advanced modules. Calculate total cost of ownership over three to five years, not just the initial investment.

Looking Ahead

The CAM tool landscape continues to evolve. Software subscription solutions offer lower upfront costs and easier updates. And newer format standards like ODB++ and IPC-2581 are slowly gaining ground alongside traditional Gerber files.

Yet the fundamental selection criteria remain unchanged. Match tool capability to actual need. A Gerber viewer suffices for visualization while a Gerber editor serves moderate complexity and volume. A full CAM workstation typically justifies its cost when processing volume, design complexity, or automation requirements demand it.

The best choice isn’t the most advanced tool or the cheapest option. It’s the one that solves your current problems while providing reasonable growth capacity. Take time to evaluate trial versions with real projects. Involve the people who will actually use the software daily. Consider where your business will be in three years, not just where it is today.

In an industry where margins are often tight and quality is non-negotiable, your CAM tools directly impact both profitability and customer satisfaction. Choose wisely, and those tools become a competitive advantage. Choose poorly, and you’ll either limit your capabilities or waste money on features you’ll never use. The right tool, properly matched to need, pays for itself through improved efficiency, reduced errors, and enhanced capability.
